Paper Roll To Sheet Cross Cutting Machine

Product Description

1.Upper knife roller has the British cutter method to effectively reduce the load and noise during paper cutting, and to extend the life of the cutter. The upper knife roller is welded with stainless steel for precision machining, and is dynamically balanced during high-speed operation. Lower tool seat is made of cast iron integrally formed and cast, and then precision processed, with good stability

2.Touch screen controls are used to set and display sheet size, count, cut speed, delivery overlap, and more. The touch screen controls work in conjunction with a Siemens PLC.

3.Three sets of slitting knife unit to have a high speed, smooth and powerless trimming and slitting, with quick adjustment and locking. High rigidity knife holder is suitable for 300m/min high speed slitting .

Video

Product Superiority

HSCJ-B series is an economical model released for customers with limited production space.

Driven by AC servo motor, controlled by UK motion, machine can cut paper stably in high speed.
Germany precise bearing and cutting knife assure the high cutting precision.
Touch interface controlis simple to operate.
Reasonable inflection device ensures smooth of paper.
The single-roll machine covers a less space, perform well in limited area and is economical.

The Content Of Standard Configuration

01.Upper knife: Use British cutting method, the upper knife roller is processed by steel welding and dynamic balance adjustment, effectively reduce vibration and noise when high-speed operation, and extend service life.
02. Lower knife: Knife holder is made by cast iron integrally molded casting and precise processing with good stability.
03.Active roller: The roller surface has a expansion pattern design and the airbag controls the roller body pressure paper.
04.Reverse knife: Made of special alloy steel, long life; The blade is easy to adjust.
05.Safety cover: Power off automatically when safety cover opened safe operation.
06.Transmission: key bearing from German FAG, other bearings from Japan NSK, assure high precision and stability.

MOTORIZED DOUBLE DECURLER This newly designed decurler can flatten the paper with a much better result than the conventional decurler system, which enable this machine practically to run thick board till 5oogsm
	ELECTRIC CONTROL PART The man-machine interface and HZU processor, mainly used for the input of production data, monitoring of equipment operating status and system fault indication.The rotary horizontal cutter is driven by KymmeneTlSMGlk drive with fast operation and accurate positioning based on production, and actual speed from pulling roller feedback by encoder.
AUTOMATICALLY ADJUST THE ANGLE (PAPER ALIGNING SYSTEM) The stepper motor precisely controls the precision screw and adjusts the inclination of the cutter group, so as to effectively ensure the right Angle of paper and reduce the error rate and loss caused by manual adjustment.
	AUTOMATIC PILE ALLGNMENT DEVICE AT DELIVERY SECTION Lift automatically moves down when the pile is stacked to a consider- able height. The stacker table has fnishing function of three sides, one side is vibrated by motor, others by air, hand wheel to adjust the position of paper to improve the simplicity and safety of operation.

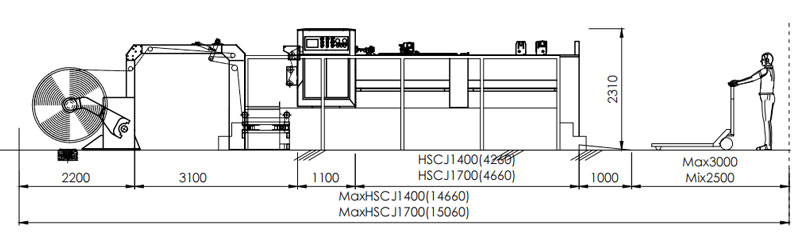

Layout

1 reel unwinder

Technics Of Equipment

According to HOUSENG Product performance, the machine are mainly used for paper sheeting in Paper Mill, Printing House,Packaging and etc,

mainly process including: Unwinding—Cutting—Conveying—Collecting.

Function Description

Upper knife roll has the British cutter method to reduce the load and noise when the cutter extend cutter life. To steel welding gave precision machining, and dynamic balance adjustment, effectively reduce the vibration and noise of the high-speed operation.  Rotary cutting knife is made of special alloy steel precision machining, with long service life and easy adjustment of the blade. Safety cover will automatically shut down when the safety cover is opened, ensuring safety.
	Dual position shaftless pivoting arm unwind stand 1）Max Reel Diameter: 1800mm 2）Max Reel width: 1100mm/1400mm/1700mm/1900mm  3）Min Reel width: 300mm 4）Core size : 3"6"12" ( optional Mechanical chuck） 5）Hydraulic driving : 3.5kw 6）Clip arm move forward or back driven by hydraulic 7）Clip arm up or down driven by hydraulic 8）Pneumatic brake system 9）Roll with related bracket
Slitting knife Three sets of slitting knife unit to have a high speed, smooth and powerless trimming and slitting, with quick adjustment and locking. High rigidity knife holder is suitable for 300m/min high speed slitting.
	Delivery and Auto Jogger System Automatically goes down when paper piling up to a certain height.  (Chain type, automatic up and down, more stable operation and service life) Conveyor system with mult-stage: from high speed to low speed.  First to separate the cut paper quickly, and then overlap the paper, collect and pile the paper.
Electronic control INOVANCE Servo, INOVANCE PLC, Schneider, Eaton.
	Delivery and Auto Jogger System The stacker table has three sides shake finishing function, the side of the motor to drive the paper, the paper, on both sides by high-quality motor jogger to adjust the amplitude of the paper manually to improve the simplicity and safety of the operation.
Transport department The fast/slow speed belt is controlled by the stepless frequency converter, which automatically tracks the knife speed and adjusts the belt speed, so that the paper can be perfectly overlapped.
	Auto counting and Automatic marking Type: Insert after counting precisely Function: After inputting number of paper pieces in HMI, then it can work according to requirements. Auto-tension control Put the paper roll diameter and paper weight number into touching screen, the tension will be controlled by computer Automatically.
Driving Motor system 1, AC Servo motor & encoder for cross knife 2, AC motor & frequency transformer for conveyor 3, AC motor for up & down paper piling stand 4, AC motor for joggers  5, AC motor for unwind stand 6, AC motor for collecting waste edge

Main Technical Parameters

Option Configuration

Application Example

Working principle and function of paper roll-to-sheet cross-cutting machine

A paper roll-to-sheet cross-cutting machine is a type of equipment used in the paper converting industry to cut large paper rolls into smaller sheets. This machine is typically used in the production of various paper products such as notebooks, envelopes, and packaging materials.

The machine works by unwinding the paper roll and feeding it through a series of cutting blades that cut the paper into the desired sheet size. The machine can be adjusted to cut the paper to a specific length and width, allowing for precise and consistent cuts.

Some key features of a paper roll to sheet cross-cutting machine may include:

● High-speed cutting capabilities to increase production efficiency
● Precision cutting blades for clean and accurate cuts
● Adjustable cutting parameters for customization
● Automatic feeding and cutting mechanisms for ease of use
● Safety features to protect operators during operation

Overall, a paper roll-to-sheet cross-cutting machine is an essential piece of equipment in the paper converting industry, allowing for efficient and precise cutting of paper rolls into sheets for various applications.
